Vertical Scraper/Peeler Centrifuge, Vertical Centrifuge Machine For Sale

Vertical Centrifuge Machine

The vertical scraper (peeler) centrifuge achieves superior cleaning performance due to its additional washing functions. A pneumatically assisted scraper is adopted to remove the remnant filter cake and the CIP system is optional to secure clarity to be in accordance with GMP Norm. The vertical centrifuge also includes a frequency control system to guarantee a stable start-up. With the adoption of PLC, the Vertical Centrifuge Machine ensures fully automated processes, eliminating the need for human supervision.

Vertical Centrifuge Machine Provided By SAIDELI

As a leading industrial centrifuge manufacturer, Saideli provides a range of high-efficiency vertical scraper (peeler) centrifuges and top discharge centrifuges. These machines are ideally suited for continuous operation with high throughput rates, making them perfect for the chemical and fine chemical industries.

LGZ Automatic Scraper Bottom Discharge Centrifuge

L(P)GZ centrifuges have a perfect automatic performance and a large processing capacity.

LLGZ Pull Bag Scraper Bottom Discharge Centrifuge

L(P)LGZ centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users' demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control.

LB Platform Hermetical Top Discharge Centrifuge

Which are in accordance with the GMP Norm and the requirement of environmental protecting, started up stably under frequency conversion control system(a clutch is another choice), the motor drives the revolving drum through a transmission system to give the drum a fast and circularize revolve, thus a centrifugal force field is generated.

LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge

L(P)BF series is a type of centrifuge which is suitable to high cleaning production, healthy filteration.

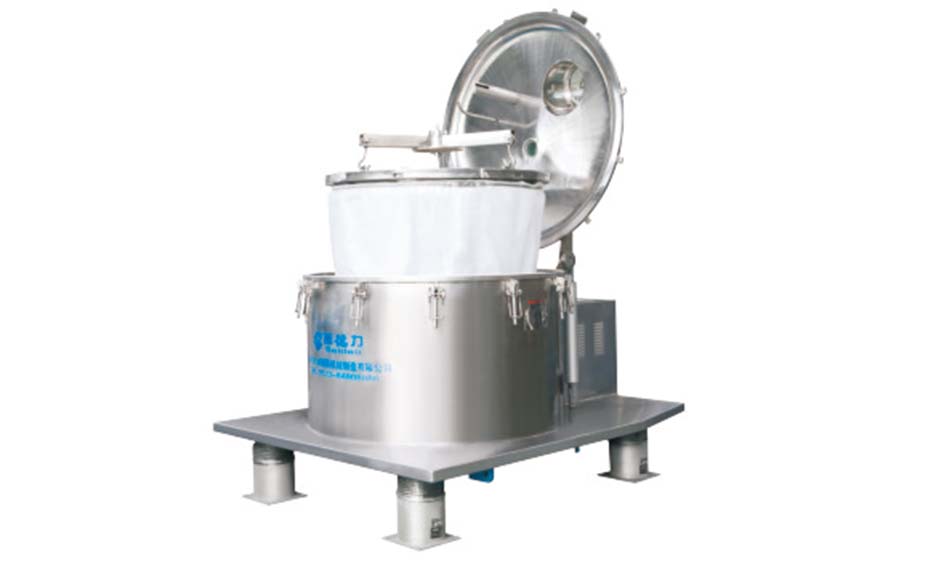

LD Bag Lifting Top Discharge Centrifuge

Platform structure, shell and plate welding as a whole, shell cover and shell body with flange quick opening structure, shell cover opening using balanced cylinder assist(spring), shell cover with feeding pipe, cleaning pipe, sight glass, observation lamp, ventilation port, etc., external connection pipe nozzles using standard flange.

Most Attractive Characteristic Of

Vertical Centrifuge From SAIDELI

First

LGZ series full automatic scraper bottom discharge vertical centrifuge is a kind of filtration centrifuge with continuous working, and intermittent discharging by scraper. This series vertical centrifuge machine are widely used on suspension separating of middle size particle, special when the customer do not have a high requirement on solid crystal figure.

Second

This vertical centrifuge is a solid-liquid separation machine by centrifugal force, after the revolving drum has reached to a certain speed, the material can be distributed evenly on the wall of drum by feeding pipe, and the filter liquid is discharged by pore of filter cloth installed in the drum, then drained from the outlet pipe, and the solid is left in the drum ,after reaching a certain amount, the scraper is started to scrape the material from the drum wall.

Get Optimal Separation

Support From SAIDELI.
