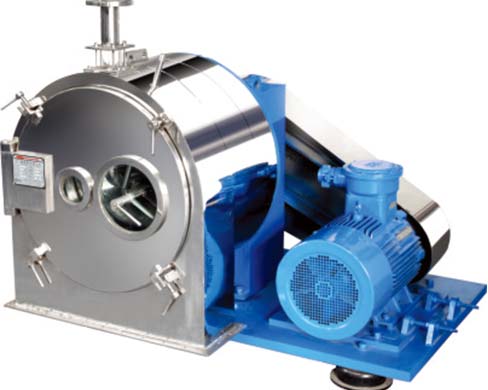

LWL Screen Filtration Centrifuge is mainly used for separating and dehydrating suspension with solid-phase grains ranging from 0.05 to 10mm. It is applied in chemical, foodstuff, chemical fiber, mining and metal melting, pharmacy, and light industry.
LWL Model and Main Parameters
<td valign="center" width="142"
Item/Model | LWL 200×160 | LWL 320×198 | LWL 350×300 | LWL 450×300 | LWL 530×350 | LWL 630×465 | LWL 750×790 | LWL 800×500 | LWL 1000×650 |
Drum diameter (mm) | 200 | 320 | 350 | 450 | 530 | 630 | 750 | 800 | 1000 |
Drum length (mm) | 160 | 198 | 300 | 320 | 350 | 465 | 790 | 500 | 650 |
Max. Speed (r/min) | 4000 | 3000 | 3000 | 2600 | 2000 | 1850 | 2100 | 1500 | 1000 |
Max. Separating factor (N) | 1790 | 1609 | 1762 | 1702 | 1185 | 1205 | 1848 | 1008 | 560 |
Speed difference between drum and spiral | 18 | 26 | 24 | 22 | 23 | 24 | 23 | 24 | 24 |
Motor power (KW) | 3 | 7.5 | 15 | 22 | 30 | 37/45 | 75 | 75 | 90 |
Size (mm) | 940×800 | 1225×1115 | 1550×1450 | 1650×1552 ×1348 | 1850×2022 ×1581 | 2120×2190 ×1660 | 2610×2115 | 2700×2100 | 3000×2170 |
Weight (Kg) | 250 | 660 | 1800 | 2250 | 3200 | 3800 | 6500 | 6000 | 7600 |
Processing capability (m3/h) | 0.5-1.5 | 1.5-6 | 3-15 | 3-18 | 6-20 | 8-30 | 15-40 | 15-45 |
