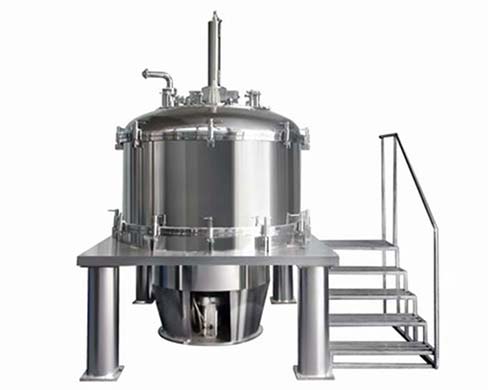

L(P)LGZ vertical basket centrifuges are suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium-size grains solid. For example chemical industry products such as gypsum, ammonium sulfide, bluestone, potassium chloride, borax, dyestuff, resin, pesticide, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection, etc.
Item/Model | L(P)LGZ | L(P)LGZ | L(P)LGZ | L(P)LGZ | L(P)LGZ | L(P)LGZ | L(P)LGZ | L(P)LGZ |
Drum diameter (mm) | 800 | 1000 | 1250 | 1350 | 1400 | 1600 | 1680 | 1800 |
Drum Height (mm) | 400 | 500 | 500/630 | 630 | 700 | 800/720 | 740 | 800 |
Drum volume (L) | 80 | 165 | 310/400 | 445 | 560 | 800/720 | 900 | 1000 |
Loading capacity (Kg) | 100 | 210 | 400/520 | 534 | 672 | 1000/870 | 1125 | 1200 |
Max. Speed (r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 | 850 | 850 | 800 |
Max. Separating factor (N) | 1007 | 805 | 698/1006 | 1086 | 1033 | 646 | 646 | 645 |
Motor power (KW) | 7.5 | 15 | 18.5/22 | 30 | 30 | 37 | 37 | 55 |
Size including shock absorber (mm) | 1700 ×1400 ×2064 | 2100 ×1600 ×2200 | 2300 ×1800 ×2500 | 2600 ×2000 ×2900 | 2600 ×2000 ×3200 | 3000 ×2400 ×3510 | 3000 ×2400 ×3100 | 3230 ×2630 ×3850 |
Weight (Kg) | 2100 | 3800 | 5600 | 6000 | 6500 | 12000 | 12500 | 16200 |
During the process of discharging, the scraper acts, under the impact of it most products are discharged through the blanking hole at the bottom of drum to the outside. The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanism inside the drum.
