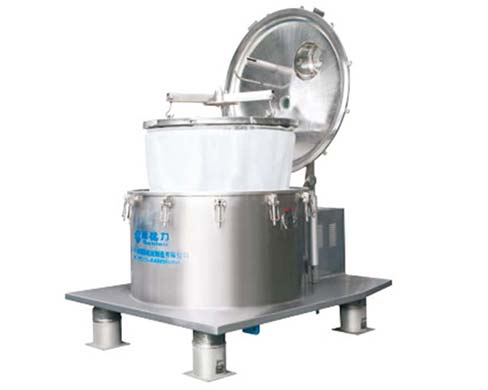

LD Bag Lifting Top Discharge Centrifuge

Name: LD Bag Lifting Top Discharge Centrifuge
Brand: JIANGSU SAIDELI PHARMACEUTICAL MACHINERY CO.,LTD.

Platform structure, shell and plate welding as a whole, shell cover and shell body with flange quick opening structure, shell cover opening using balanced cylinder assist(spring), shell cover with feeding pipe, cleaning pipe, sight glass, observation lamp, ventilation port, etc., external connection pipe nozzles using standard flange.

Get Centrifuge Machine Price Now

PDF Download

SCROLL DOWN

Specification of LD Bag Lifting Top Discharge Centrifuge

LD Series Centrifuge Main Parameters

Item/Model	L(P)D-600	L(P)D-800	L(P)D-1000	L(P)D-1200	L(P)D-1250	L(P)D-1250A	L(P)D- 1500	L(P)D-1600	L(P)D-1800
Drum diameter (mm)	600	800	1000	1200	1250	1250	1500	1600	1800
Drum volume (L)	45	90	140	250	300	400	700	845	910
Drum Height (mm)	350	400	400	480	500	600	720	800	750
Loading capacity (Kg)	68	135	200	300	400	520	800	800	1180
Drum Max. Speed (r/min)	1600	1200/1500	1080/1200	950	900	1000	850	800/850	720
Max. Separating factor (N)	860	645/1007	652/805	605	566	698	606	573/646	522
Motor power (KW)	4	7.5	11	18.5	18.5	18.5	22	30	37
Weight (Kg)	1400	2100	3000	4200	5000	5520	6500	7500	12000

LD Bag Lifting Top Discharge Centrifuge

                            01.

                            The quick-loading lifting bag discharging method is adopted, which is easy to operate, fast and labor-saving.

                            02.

                            Fully hermetical structure design is adopted, avoiding cross-contamination of separation materials and in accordance with GMP specifications. The nitrogen protection in the inner chamber of the centrifuge fully meets the requirements of hermetical explosion protection.

                            03.

                            The bag lifting centrifuge is easy to discharge with large machine cover.

                            04.

                            Cover opening is equipped with mechanical balancer.

                            05.

                            Equipped with frequency conversion program control system, smooth and steady starting.

                            06.

                            The inner and outer surfaces are polished, without dead angle, all smooth transition, with on-line cleaning(material cleaning, machine cleaning), in order to achieve the best washing effect.

                            07.

                            It has strong applicability, wide application range and crystal particles are not easy to be destroyed.
