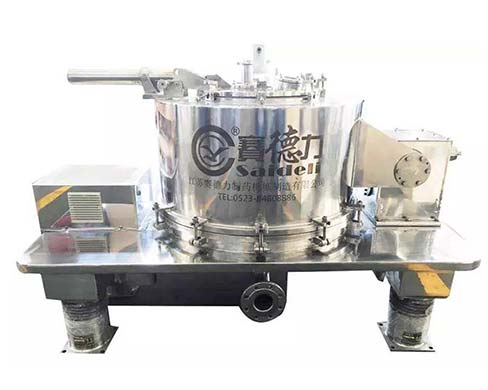

LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge

Name: LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge
Brand: JIANGSU SAIDELI PHARMACEUTICAL MACHINERY CO.,LTD.

Now LBF centrifuge platform hermetical full housing open-top discharge centrifuge can be widely used in the separation of solid-liquid mixtures in pharmacy, food, fine chemical field, etc. In addition, it has the advantage of the best technologies, strong anti-erosion, stable work, and can reach the high standard sanitation requirements.

Get Centrifuge Machine Price Now

PDF Download

SCROLL DOWN

Specification of LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge

LBF Series Centrifuge Main Parameters

Item/Model	L(P)BF-450	L(P)BF-600	L(P)BF-800	L(P)BF-1000	L(P)BF-1200	L(P)BF-1250
Drum diameter (mm)	450	600	800	1000	1200	1250
Drum Height (mm)	300	350	400	420	450	500
Drum volume (L)	20	45	90	140	250	520
Loading capacity (Kg)	30	68	135	200	300	400
Drum Max. Speed (r/min)	2000	1600	1200/1500	1080/1200	950	1000
Max. Separating factor (N)	1007	860	645/1007	652/805	605	698
Motor power (KW)	3	3	5.5/7.5	11	15	18.5
Size (mm) (L×W×H)	1460×920×1120	1800×1200×1030	2000×1400×1085	2650×1600×1375	2900×1900×1500	2900×1900×1505
Weight (Kg)	750	1500	2300	3200	4800	5300

Highlights of LBF Platform Hermetical Full Housing Open Top Discharge Centrifuge

                            01.

                            The parts contacted with material are all stainless steel, with good erosion-proof quality.

                            02.

                            The surface of the main accessories of equipment are polished accurately, there is no angle in inner structure, which can clean easily.

                            03.

                            The shell cover can be turned over more than 90 degree, the drum can be exposed wholly, the bottom of drum can be touched, which can make cleaning and exchange filter cloth conveniently.

                            04.

                            Sealed belt lid, motor lid, changing nozzle of setting gas are adopted by the parts of transmission which can avoid powder pollution rising from belts rubbing.
