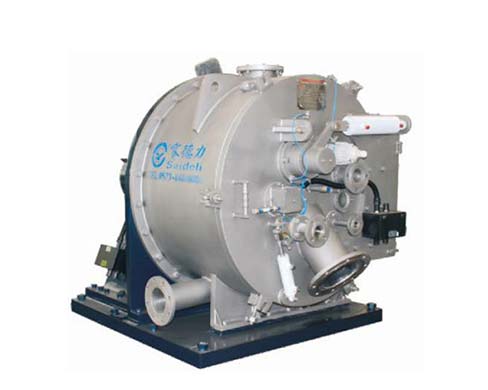

GKF Automatic Horizontal Scraper Centrifuge

Name: GKF Automatic Horizontal Scraper Centrifuge
Brand: JIANGSU SAIDELI PHARMACEUTICAL MACHINERY CO.,LTD.

Saideli GK(F) series automatic horizontal scraper centrifuge is not only used for the separation of medium and fine particle contained suspensions, but also used for the solid-liquid separation of noxious, explosive and combustible products. It adopts an inclined hopper or screwed conveyor to discharge the solid product.

This automatic scraper centrifuge is mainly used in the solid-liquid separation of raw materials, intermediates and end products in the fields such as the pharmaceutical industry and chemical industry.

Get Centrifuge Machine Price Now

PDF Download

SCROLL DOWN

Specification of GKF Automatic Horizontal Scraper Centrifuge

GKF Model and Main Parameters

Item/Model	GKF-600	GKF-800	GKF-1050	GKF-1250	GKF-1250A	GKF-1350	GKF-1600	GKF-1600A
Drum diameter (mm)	600	800	1050	1250	1250	1350	1600	1600
Drum height (mm)	315	400	500/630	500	630	680	800	1000
Drum volume (L)	41	100	210/260	265	335	500	700	840
Loading capacity (Kg)	53	130	230/280	350	430	650	900	1000
Max. Speed (r/min)	2400	1500/1600	1400/1700	1200	1200	1200	950	950
Max. Separating factor	1931	1007/1145	1150/1696	1006	1006	1086	808	808
Motor power (KW)	18.5	30	37/55	55	55	55	90	90
Size (mm)	1745×1400 ×1307	2215×2000 ×2100	3191×2100 ×2140	2745×2200 ×2620	2745×2200 ×2620	3860×2500 ×2900	4625×3100 ×3430	4625×3100 ×3430
Weight (Kg)	3000	3200	6000/6200	7000	7600	8500	14000	14800
Weight including platform (Kg)	3000	6000	14000/14200	14500	15600	16000	31000	31800

Highlights of GKF Automatic Horizontal Scraper Centrifuge

                            01.

                            This scraper centrifuge adopts speed regulation by frequency convertor and PLC control, friendly human-computer interface and electric-hydraulic(pneumatic) device. Monitoring can be executed in overall processed such as felling, initial filtering, washing, secondary filtering and discharging, etc. which embodies automatic operation without operator, so human-machine conversation can be realized with convenient use and maintenance.

                            02.

                            Frequency speed regulation system is adopted to ensure stepless speed regulation, while dynamic braking(or regenerative braking) is adopted to ensure stable operation. Three is also perfect protection system, product level detection, speed inspection, vibration protection, interlock protection for machine's opening, over heating operation for motor and scarper motion protection, all of which make it safer for operation.

                            03.

                            Adopted whole sealing explosion-proof structure, the peeler centrifuge has automatic air exchange system (according to oxygen content or protective gas pressure) or inert gas protection, so it can meet the demand of GMP Norm of pharmaceutical industry and solid-liquid separation of flammable and explosive products.

                            04.

                            Welded structure is adopted on the shell to ensure a tight form and high intensity but light weight.

                            05.

                            Inner surface is polished and no dead angles are left. Connection parts, welding seam, corner and edge adopt round and smooth treatment. Equipped with CIP system (product and machine cleaning) to get a optimized washing effect.

                            06.

                            The automatic residual cakes removing device is optional(have owned the national patent).
