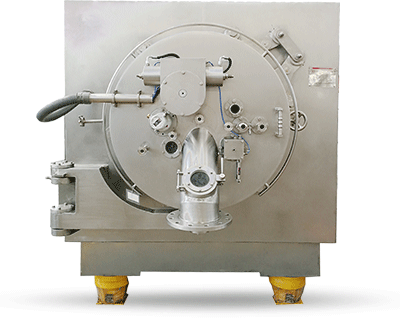

The basket centrifuge machine is controlled by PLC. GKC automatic horizontal centrifuge adopts wall penetration installation; the power area and processing area of basket centrifuge can be separated. It can be used in the pharmaceutical industry which has high requirements. The whole housing bucket can be open for inspection and cleaning.
GKC Model and Main Parameters
| Item/Model | GKC-600 | GKC-800 | GKC-1000 | GKC-1050 | GKC-1250 | GKC-1350 | GKC-1600 |
| Drum diameter(mm) | 600 | 800 | 1000 | 1050 | 1250 | 1350 | 1600 |
| Drum Height(mm) | 315 | 400 | 500 | 500 | 630 | 660 | 800 |
| Drum volume(L) | 41 | 100 | 180 | 210 | 335 | 450 | 700 |
| Loading capacity(Kg) | 53 | 130 | 230 | 270 | 430 | 585 | 900 |
| Max. Speed(r/min) | 2400 | 1500/1800 | 1400 | 1400/1700 | 1200 | 1200 | 950 |
| Maximum separating factor | 1931 | 1007/1448 | 1096 | 1150/1696 | 1006 | 1086 | 808 |
| Motor power (Kw) | 18.5 | 30 | 37 | 37 | 55 | 55 | 90 |
| Shock absorber(mm) | 2016x1410 x 1480 | 2620x2000 x 2070 | 3439x2316 x 2428 | 3439x2316 x 2428 | 3700x2500 x 2700 | 3860x2680 x 2740 | 4823x3400 x 3355 |
| Weight including Platform(Kg) | 4000 | 9800 | 15000 | 16000 | 18000 | 22000 | 28000 |
Perforated basket centrifuges are widely utilized across various industries due to their efficient solid-liquid separation capabilities.
In the pharmaceutical industry, these basket centrifuges are essential for processing high-purity substances where cleanliness and sterility are paramount. They ensure thorough separation and enable easy inspection and cleaning, meeting strict regulatory requirements.
In the chemical industry, perforated basket centrifuges are commonly employed for crystallization processes, filtration of suspensions, and recovery of solid materials. Their ability to handle a range of materials, from fine powders to larger crystals, makes them versatile in handling different chemical compositions.
The food and beverage industry also benefits from these basket centrifuge machines, especially for extracting liquids from products like starches, sugars, and proteins. Here, they contribute to high-efficiency separation while maintaining product integrity.
In the environmental sector, the scraper centrifuge is used for sludge dewatering in wastewater treatment plants and in the recovery of reusable materials.
Overall, perforated basket centrifuges offer precision, efficiency, and adaptability, making them a critical asset across multiple industries.
